• product name:LSK 05-05
  • category:thyssenkrupp
  • Brand:thyssenkrupp
  • manufacturer:thyssenkrupp
  • use:Laser welding
  • major client:
    • description
    • features
    • parameter
    • Case

One tool, many capabilities


How to achieve vehicle weight reduction? How to improve the body strength? How to optimize the passive safety of vehicles? ——Laser welding provides an effective solution.

ThyssenKrupp has designed a compact and flexible body laser welding system-LSK05 series for well-known car companies such as German Volkswagen and Audi, which can not only meet the welding of aluminum alloy plates, but also meet the requirements of galvanized sheets and super Welding of strong steel body sheet metal.

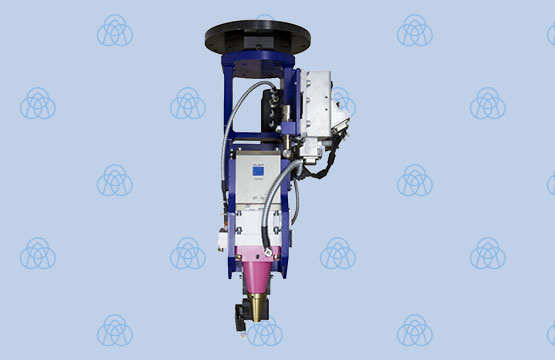

LSK05-05 is a brand-new tool for unidirectional finger pressing developed by LSK05-01 as the basic function module. It adopts 90° right angle design and patent design unilateral finger pressing system, which presses the workpiece surface unilaterally. At the same time, laser welding (optional 1D scanning, optical welding seam tracking and other functions) can be applied to the roof, side sills, battery cover and other processes. At present, more than 30 sets have been delivered worldwide.


Ø 激光功率≤8kw(可定制最大20kw)

Ø 单压指系统的压力≤700N(可在线无级设定

Ø 焊接速度快≤200mm/s

Ø 高效的光学镜组,可有效降低激光能量损耗

Ø 采用螺旋喷嘴,有效延长护镜使用寿命及减少压缩空气使用量

Ø 聚焦镜下方安装有两块护镜,对聚焦镜双重保护

Ø 喷嘴上方设有便捷式护镜抽屉模块,并可实时监控护镜污染状态

Ø 独特的一体化除尘模块,可有效减少焊接过程中的飞溅和烟尘

Ø 定制的防护衣,可有效防护飞溅、粉尘等异物对设备的影响

Ø 采用总线通讯控制方式,可支持各种不同总线形式

Ø 产品一体化简洁设计,易于现场快速安装集成

Ø 可全面提供设备的备件、维修、技术支持及培训等一站式售后服务

Ø 可选增1D扫描模块及光学焊缝跟踪功能,可应用于铝合金角焊形式。
