In April 2017, Tong Hi-Tech undertook the project of Changan Automobile’s new factory in Hefei base, responsible for the “turnkey project” of the laser soldering station for the top cover of the S311 model.




According to customer needs, the project adopts a double-station layout plan, an upper and lower two-tier structure, 4 laser welding robots and 2 roof gripper handling robots, of which a single station can reach 4 models +30JPH production capacity, 60JPH reserved for speed increase Potential, truly achieve the "three high" requirements of high flexibility, high beat, high quality.

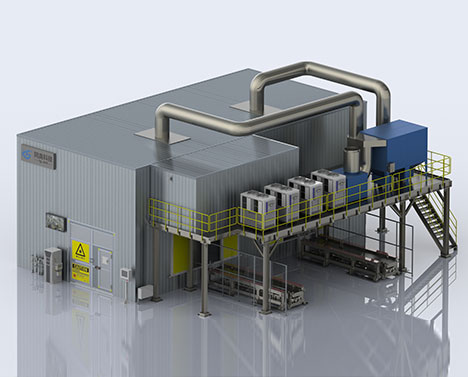

该项目是长安汽车在合肥的新建工厂,车顶激光站采用双复制并排站的布局形式,每个激光站分为上下两层钢结构,总占地面积为7x9.5x6米,一层为输送滚床、龙门架及左右各1台激光钎焊机器人,二层钢平台上布局1台车顶抓搬运机器人及4套夹具库位。

Ø 单工位25JPH+4车型柔性生产,节拍CT=123s,预留60JPH提速潜能;

Ø 常规条件下双工位可实现60JPH以上及8车型的产能;

Ø 双工位方案可实现工位间的一用一备,可确保产线不停机;

Ø 激光钎焊系统采用世界先进主流工艺设备配置,可实现高品质焊接质量要求;

Ø 工位采用同高科技自主研发的双层铝合金的防护系统,并通过德国TUV安全检测及认证;



2D布局图



项目采用长安激光标准工艺,车顶为镀锌板,侧围为碳钢板,焊缝搭接形式如图所示。激光焦点尺寸为3.2mm,焊丝为CuSi3,直径1.6mm,配合热丝工艺,预热电流<230A。
